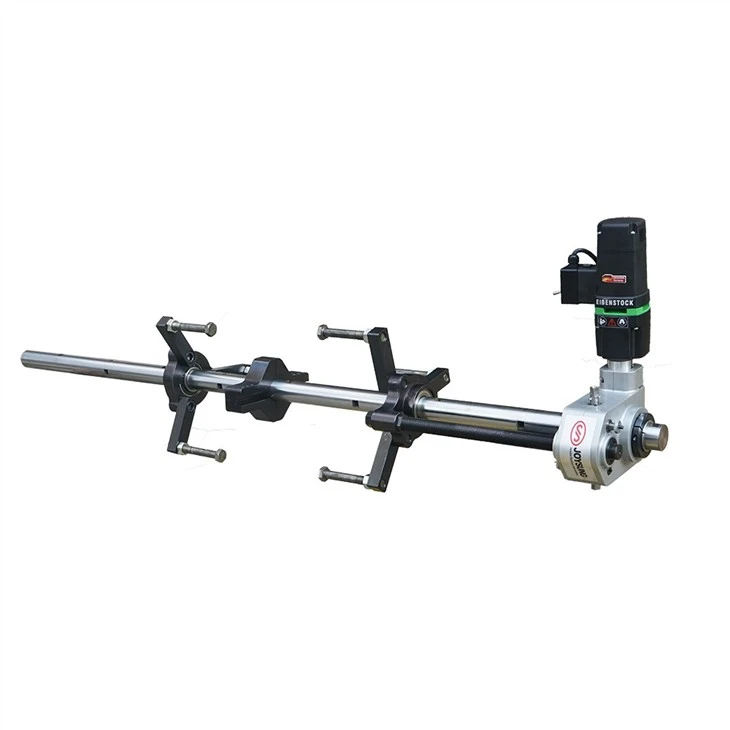

TDG50 line boring machine
Modular design:
The machine combine with main parts below: boring bar, electric motor, boring head, mounting kit, facing head, feed unit, rotation unit, every parts are adopt high quality material, Gernamy electric motor, 42CrMo chrome-plated steel Boring Bar, etc.
Light weight：
The total weight is only 90kg, and the modular design makes it possible to set it up by one man, the heaviest part – boring bar weights under 30kg.
Specification:
| TDG50 Line Boring | TDG50PLUS Line Boring |
| Boring Diameter: 55-300mm | Boring Diameter: 40-300mm |
| Boring Stroke: 280mm | Boring Stroke:280mm |
| Feed Rate: 0-0.5mm/rev | Feed Rate: 0-0.5mm/rev |
| Bar RPM: 0-49、49-98 | Bar RPM: 0-49、49-98 |
| Drive Power Unit: Single phase,110V/230V, 50/60Hz, 1800W | Drive Power Unit: Single phase,110V/230V, 50/60Hz, 1800W |
| Boring Bar:∅50×1828mm | Boring Bar:∅50×1828mm,∅35×1200mm |
| Shipping Weight:98kg | Shipping Weight:125kg |
